90066-2V-110-BL

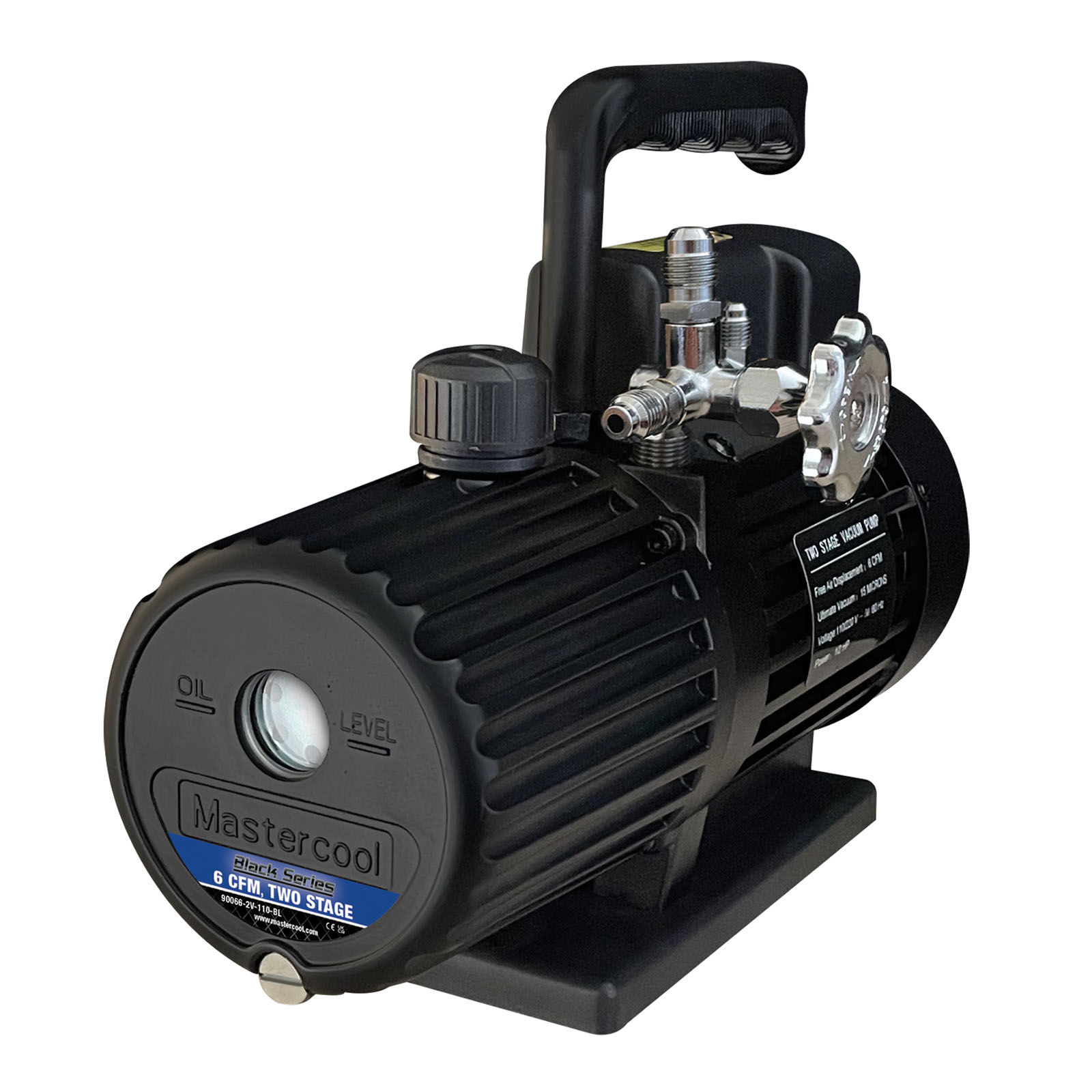

BLACK SERIES 6 CFM VACUUM PUMP (TWO STAGE)

Categories: , .

Product Description

STANDS UP TO THE MOST GRUELING CONDITIONS

Mastercool’s “Black Series” vacuum pumps are durable and time tested to stand up to the most grueling conditions and will provide years of reliable service. This vacuum pump provides the power and mobility necessary for a wide variety of applications.

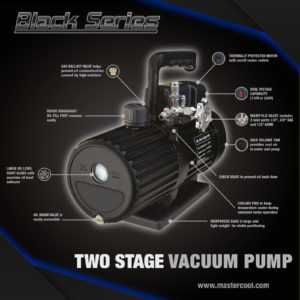

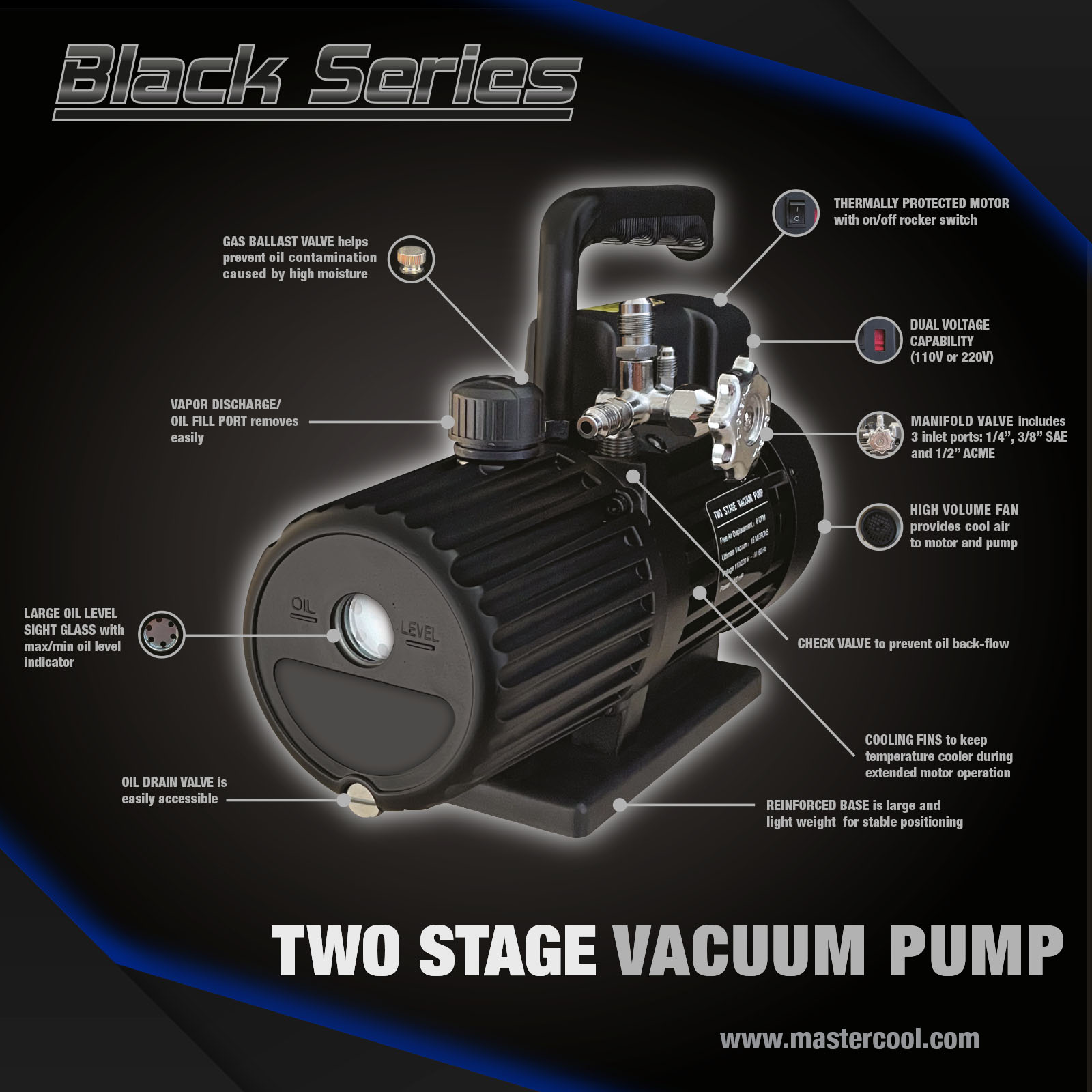

FEATURES:

  • Refined cartridge machining process creates an improved surface finish extending the longevity of the pump life
  • Expanded internal oil path creates less friction and ultimately less heat
  • Upgraded seals insure maximum vacuum
  • U.S. designed and tested
  • Easy grip handle
  • Gas ballast valve helps prevent oil contamination caused by high moisture
  • Easily removable vapor discharge/oil fill port
  • Large oil level sight glass with max/min level indicator
  • Easily accessible oil drain valve
  • Thermally protected motor with on/off rocker switch
  • Manifold valve isolates pump from the system when testing for leaks. Includes 3 inlet ports, 1/4″, 3/8″ SAE and 1/2″ ACME
  • High volume fan provides cool air to motor and pump
  • Check valve prevents oil back-flow
  • Cooling fins keep temperature cooler during extended operation
  • Large, light weight reinforced base for stable positioning

SPECIFICATIONS:

  • Stages: 2
  • Free air displacement: 6 CFM
  • Ultimate vacuum: 15 microns
  • Motor: 1/2 HP
  • Pump speed: 1720 RPM
  • Electrical specs: 110/220 V, 50/60 Hz
  • Power: 110 V cable
  • Weight: 25 lbs (11.4 kg)
  • Dimensions: 37.9 x 16.7 x 27.5

Also Available:
90066-2V-220-LBL

  • Stages: 2
  • Free air displacement: 170 lit/min (60 Hz), 142 lit/min (50 Hz)
  • Ultimate vacuum: 15 microns
  • Motor: 1/2 HP
  • Pump speed: 1440 RPM
  • Electrical specs: 110/220 V, 50/60 Hz
  • Power: 220 V schuko cable
  • Weight: 25 lbs (11.4 kg)
  • Dimensions: 37.9 x 16.7 x 27.5

* PLEASE NOTE: The micron readings on all vacuum pumps represent optimal laboratory conditions. Field conditions may vary from these readings.

SERVICE INFORMATION:
Oil Capacity: 15 oz / 440 ml

Available Downloads

PDF_downlaod Instructions
PDF_downlaod Flier
PDF_downlaod Parts List
