90065

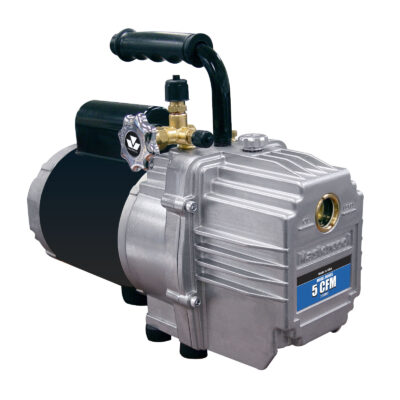

5 CFM VACUUM PUMP (TWO STAGE)

Category: .

Product Description

A good quality vacuum pump is an integral tool for complete A/C service. Mastercool vacuum pumps are durable and time tested. They stand up to the most grueling conditions and will provide years of reliable service. Mastercool offers a complete selection of pumps. Regardless of your service requirements, Mastercool has a model for your applications.

This model is an excellent choice for small to medium sized systems (2.5 lb to 10 lb charge capacity). This two stage pump features a manifold valve to isolate it from the system and three inlet ports: 1/4” FL, 3/8” FL and 1/2” ACME (for automotive R134a systems).

SPECIFICATIONS:

  • No. of Stages: 2
  • Free Air Displacement: 5 CFM
  • Ultimate Vacuum: 25 Microns
  • Pump Motor: 1/3 HP
  • Pump Speed: 1725 RPM
  • Electrical Specs: 110 V/60 Hz
  • Shipping Weight: 29 lbs (13.2 kg)
  • Dimensions in cm: 37 x 15.5 x 27.5 x 24

* PLEASE NOTE: The micron readings on all vacuum pumps represent optimal laboratory conditions. Field conditions may vary from these readings.

Also Available:
90065-220

  • No. of Stages: 2
  • Free Air Displacement: 119 lit/min, 142 lit/min
  • Ultimate Vacuum: 25 Microns
  • Pump Motor: 1/3 HP
  • Pump Speed: 1425/1725 RPM
  • Electrical Specs: 220 V/50 Hz, 220 V/60 Hz
  • Shipping Weight: 29 lbs (13.2 kg)
  • Dimensions in cm: 37 x 15.5 x 27.5 x 24

90065-J (Japanese standard)

  • No. of Stages: 2
  • Free Air Displacement: 119 lit/min, 142 lit/min
  • Ultimate Vacuum: 25 Microns
  • Pump Motor: 1/3 HP
  • Pump Speed: 1425/1725 RPM
  • Electrical Specs: 100 V/50/60 Hz
  • Shipping Weight: 29 lbs (13.2 kg)
  • Dimensions in cm: 37 x 15.5 x 27.5 x 24

SERVICE INFORMATION:
Oil Capacity: 18 oz / 531 ml
Replacement Cartridge: 90165-R
Seal Service Kit: 90062-11-SEAL

Available Downloads

PDF_downlaod Instructions
PDF_downlaod Parts List
