R22, R404A, R410A 2-3-WAY ALUMINUM MANIFOLD 2 1/2″ GAUGE SET

Product Description

  • 2 1/2″ Gauges
  • 1/4″ MFL
  • Exclusive 3/8″ Ball Valve Design
  • Full 3/8″ bore all the way through the block increases flow over the standard block designs
  • Ball valve rotates 90˚ between two teflon washers requiring little effort to turn, even under pressure
  • Opens and closes quickly with only a quarter turn
  • Visual knob position quickly indicates if valves are open or closed
  • Color coordinated gauges for multi-refrigerant recognition
  • Includes set of  1/4″ SAE blue, red and yellow nylon barrier ball valve hoses with manual shut-off valves and one 3/8″ SAE black vacuum hose

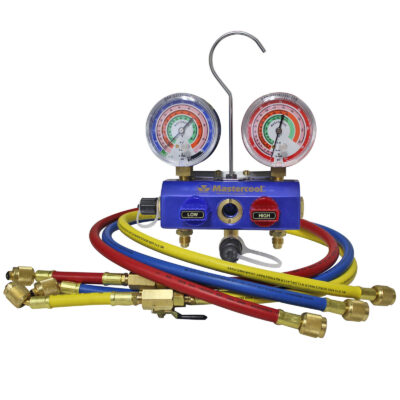

57236: R22, R404A, R410A 2-Way 3/8″ Ball Valve Manifold Gauge Set includes 3 – 36″, 1/4″ SAE ball valve hoses with manual shut-off valves packaged in a plastic box

57261: R22, R404A, R410A 2-Way 3/8″ Ball Valve Manifold Gauge Set includes 3 – 60″, 1/4″ SAE ball valve hoses with manual shut-off valves packaged in a plastic box

57272: R22, R404A, R410A 2-Way 3/8″ Ball Valve Manifold Gauge Set includes 3 – 72″, 1/4″ SAE ball valve hoses with manual shut-off valves packaged in a plastic box

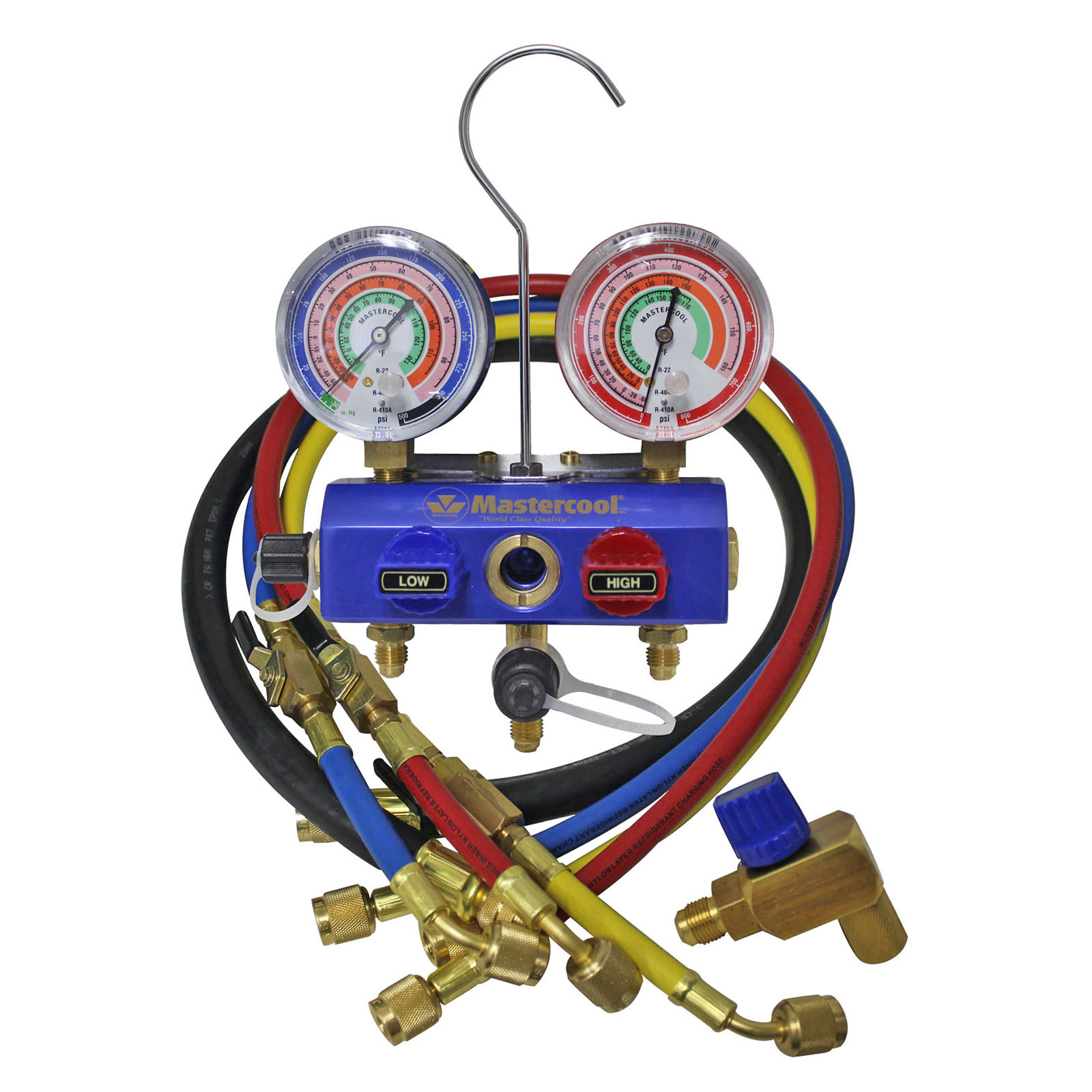

57436: R22, R404A, R410A 3-Way 3/8″ Ball Valve Manifold Gauge Set includes 3 – 36″, 1/4″ SAE ball valve hoses with manual shut-off valves, 1 – 3/8″ SAE vacuum hose and 90˚ swivel vacuum ball valve packaged in a plastic box

57461: R22, R404A, R410A 3-Way 3/8″ Ball Valve Manifold Gauge Set includes 3 – 60″, 1/4″ SAE ball valve hoses with manual shut-off valves, 1 – 3/8″ SAE vacuum hose and 90˚ swivel vacuum ball valve packaged in a plastic box

57472: R22, R404A, R410A 3-Way 3/8″ Ball Valve Manifold Gauge Set includes 3 – 72″, 1/4″ SAE ball valve hoses with manual shut-off valves, 1 – 3/8″ SAE vacuum hose and 90˚ swivel vacuum ball valve packaged in a plastic box

REPLACEMENT PARTS:
90530: Ball Valve Only (3/8″ FML x 3/8″ FFL 90˚)
98225: Ball Valve Repair Kit
58102-R-KIT: O-Ring repair kit for 2-3-Way Ball Valve Manifold
58102-PBR: Plastic Carrying Case
